Testing aligned with real operating conditions

The company places great emphasis on the alignment between material performance and practical engineering applications. LUNOVO has established testing and engineering validation capabilities for phase change materials, including material performance testing, product screening, solution validation, and technical support.

Through large-sample PCM testing and professional analytical methods, the company improves the consistency between test results and actual operating conditions, providing robust technical support for customers in material selection, product development, and engineering deployment.

German RAL-associated calorimetry capability

Product handbook references engineering-grade verification with three-layer calorimeter systems associated with German PCM association (RAL) designated testing practice — including comparison versus traditional DSC.

  • Larger sample mass (e.g. ~100 g) vs DSC (≤10 mg)
  • Melting / freezing closer to real duty cycles; reduced artificial supercooling
  • Results more representative of engineering-scale PCM behavior

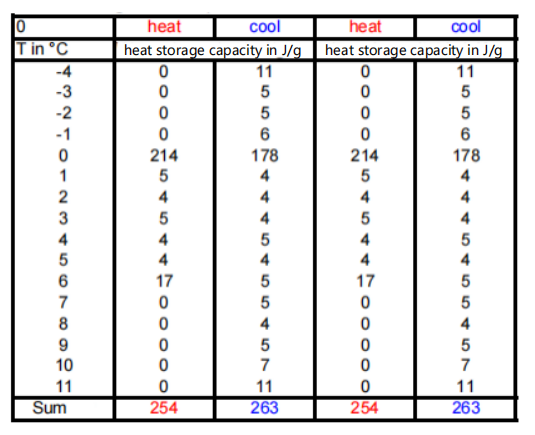

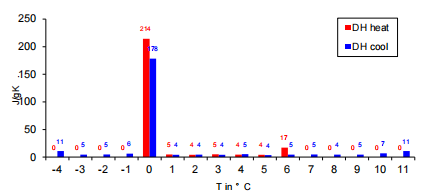

Partial enthalpy distribution of water by three-layer calorimeter Heat storage capacity table for heating and cooling
Fig.1 Partial enthalpy distribution of water at 2K/min heating/cooling rate by using the three-layer calorimeter.

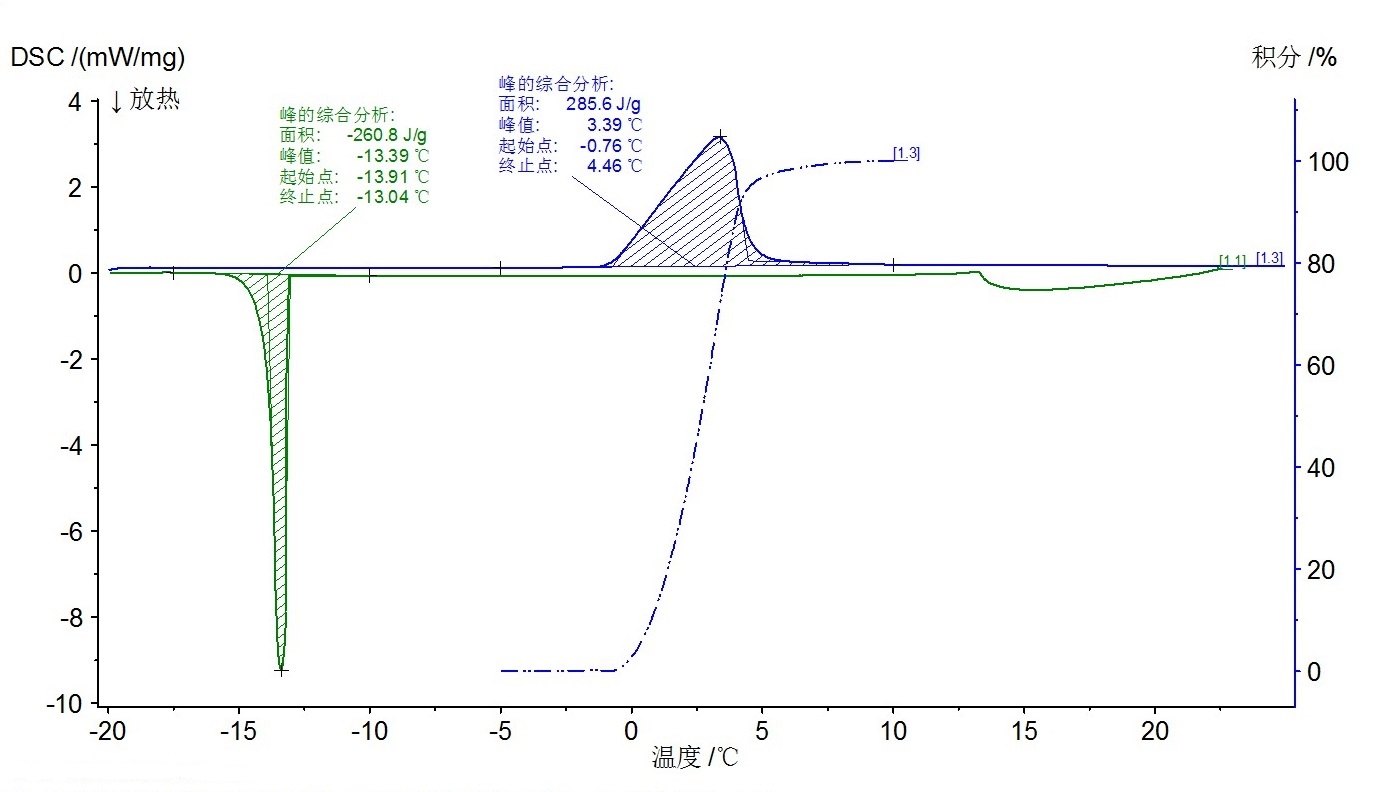

DSC enthalpy curve of water
Fig.2 Enthalpy curve of water at 2K/min heating/cooling rate by using the DSC calorimeter.
